Power up cranes with Telecrane® Radio Joystick Controllers.

High Performance and Compact. Applicable with Telecrane® Radio Joystick Controllers.

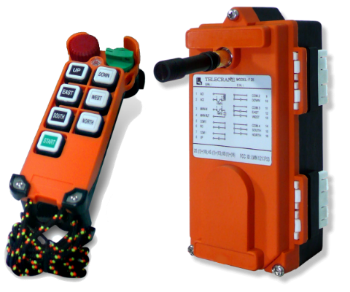

F25-6S

F25-4S/D

F25-60

F25-PARTS

F25-2S/D

F25-6D/8D/10D



RF Unit:          Microprocessor controlled PLL synthesizer (160 Channels)

RF Power:      FCC Part 15 (50mV/meter field strength)

RF Approval: License-free in North America

Installation:     Pre-wiring cable for quick and easy installation

Casing:           Durable casing with extra shock resistance (IP65)

Temperature Range:            -49°F to 185°F (-40°C to +85°C)

Operation Range:     Up to 110 yards (100 meters)







TRANSMITTER

Power Supply:           Four 1.5 Volts Batteries

Dimensions:  6 1/8×2 3/8×2 inches (156×61×51 mm)

Weight:           About 0.47 lbs (215 g) w/o batteries

Power Indication:      3 Stage with LED Indicator


RECEIVER

Power Supply:           24/48/(110)/220/380 VAC 50-60 Hz(±20%) AND 12-24 VDC

Dimensions:  7.28×3.35×3.35 inches (185×85×85 mm)

Weight:           About 1.21 lbs (550 g) without Cable





F25 TELECRANE
