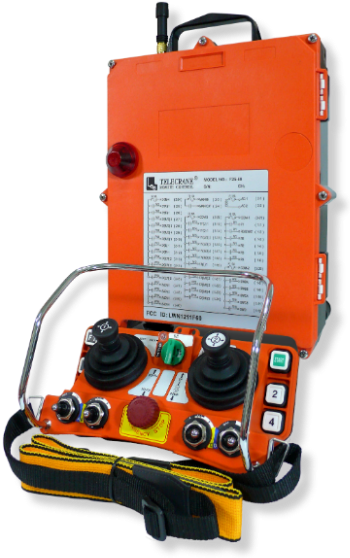

F25-60

F25-60 GENERAL SPECIFICATION

EMS Button × 1    Start Button × 1    Rotary Key × 1

5-Step Joystick x 2    6 Single Step Buttons

Package includes: One transmitter + One Receiver

RF Unit:          Microprocessor controlled PLL synthesizer (160 Channels)

RF Power:      FCC Part 15 (50mV/meter field strength)

RF Approval: License-free in North America

Installation:     Pre-wiring cable for quick and easy installation

Casing:           Durable casing with extra shock resistance (IP65)

Temperature Range:            -49°F to 185°F (-40°C to +85°C)

Operation Range:     Up to 110 yards (100 meters)

TRANSMITTER

Power Supply:           Four 1.5 Volts Batteries

Dimensions:  8.66×4.33×3.54 inches (220×110×90mm)

Weight:           About 0.55 lbs (250 g) w/o batteries

Power Indication:      3 Stage with LED Indicator

RECEIVER

Power Supply:           24/48/(110)/220/380 VAC 50-60 Hz(±20%)

Dimensions:  11.42×9.06×2.76 inches (290×230×70mm)

Weight:           About 4.85 lbs (2200 g) without cable

Vehicle Unit:  12 - 24 VDC   For Vehicle installations

Default VAC: (110 VAC)

SAFETY-HIGH PERFORMANCE-RELIABLE TELECRANE USA CANADA

F25-60 TELECRANE
