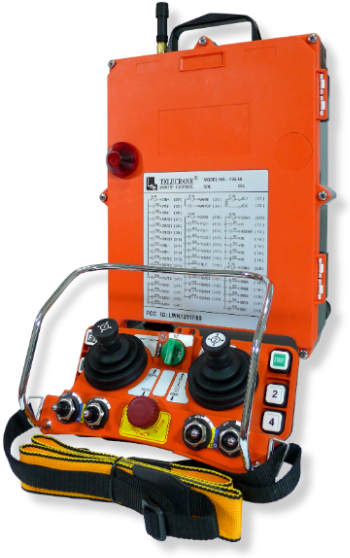

F25-60 TELECRANE
EMS Button × 1 Start Button × 1 Rotary Key × 1
5-Step Joystick x 2 6 Single Step Buttons
Package includes: One transmitter + One Receiver
SPECIFICATIONS
RF Unit: Microprocessor controlled PLL synthesizer (160 Channels)
RF Power: FCC Part 15 (50mV/meter field strength)
RF Approval: License-free in North America
Installation: Pre-wiring cable for quick and easy installation
Casing: Durable casing with extra shock resistance (IP65)
Temperature Range: -49°F to 185°F (-40°C to +85°C)
Operation Range: Up to 110 yards (100 meters)
TRANSMITTER
Power Supply: Four 1.5 Volts Batteries
Dimensions: 8.66×4.33×3.54 inches (220×110×90mm)
Weight: About 0.55 lbs (250 g) w/o batteries
Power Indication: 3 Stage with LED Indicator
RECEIVER
Power Supply: 24/48/(110)/220/380 VAC 50-60 Hz(±20%)
Dimensions: 11.42×9.06×2.76 inches (290×230×70mm)
Weight: About 4.85 lbs (2200 g) without cable
Vehicle Unit: 12 - 24 VDC For Vehicle installations
Default VAC: (110 VAC)
