General Specification
Operating Temp. -35oC ~ +80oC
Maximum range 100 Meter
TX power supply 2 AA size Alkaline batteries
RX power supply AC 24/48/110/220/380 V 12-24 DC
Protection class IP 65 Industrial standards
Id Code 4.3 billion (32 bit)
Hamming code distance > 4
Transmitter

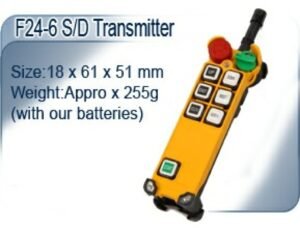

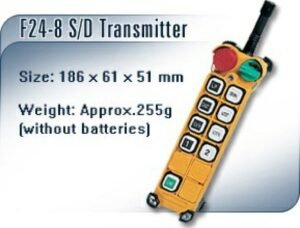

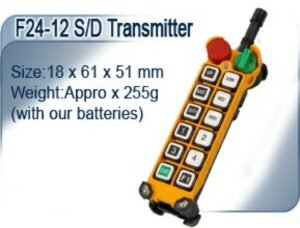

MODEL : F24-6D , F24-8D , F2410D , F24 12D
Tx dimensions & Weights 186 x 61 x 51 mm Apprx. 255g (w/o batteries)

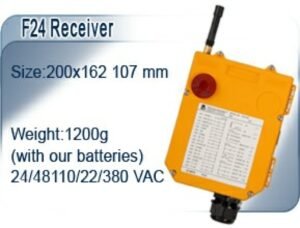

Receiver
Rx dimensions & Weights 200x162x107mm Apprx.1220g (w/o cable)
• Durable nylon-fiber housing for extra shock resistance..
• Low power consumption with 2 AA batteries (last up to 2 months in normal operation)
• Operating range up to 100 meters
• Programmable function setting through Windows-based software.
• Economic efficiency, ease of operation.
• Pre-wiring standard cable making wiring procedures easier.
• 100% compatible components reducing stock of spare part.
Safety features:
☆ 4.3 billion unique ID code
☆ Hamming code
☆ enhanced watch-dog circuit
